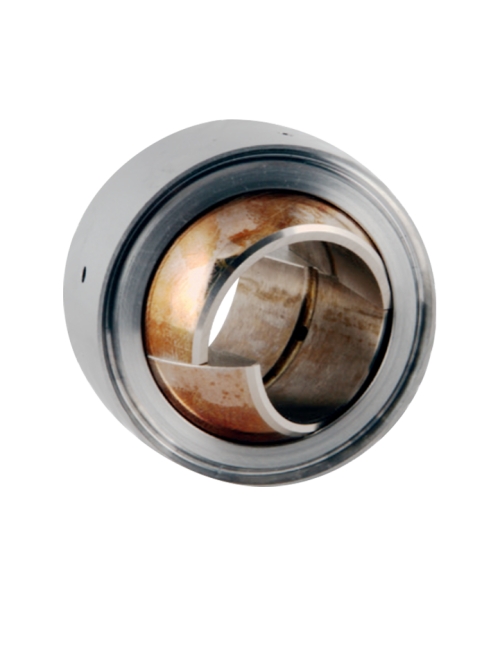

Spherical Plain Bearings

Spherical plain bearings consist of an inner ring (spherical) and a surrounding outer ring, with the inner ring usually being harder than the outer ring. Inner and outer rings can be made of steel, aluminum or copper alloys for example. Usually, the outer rings are pressed around the inner ring, thus enveloping it spherically. This plastic deformation process of the outer ring is eliminated if the inner rings are split (split ball) and can therefore be placed in the outer ring one after the other or if the outer ring has a loading slot (loader slot) into which the inner ring can be inserted. To achieve desired sliding properties and to minimize friction, the contact surfaces between the rings are optionally coated with a liner (PTFE) or covered with a dry lubricant film and greased. Application areas are usually applications that require slow rotational and swiveling movements. Known specifications include, for example, EN 2335 or AS 21154.

RWG Products

Highst Standard & Quality

Our standard range includes the product area of Specialty Bearings with four main groups: Bushings, Spherical Bearings, Ball Bearings, and Rod Ends

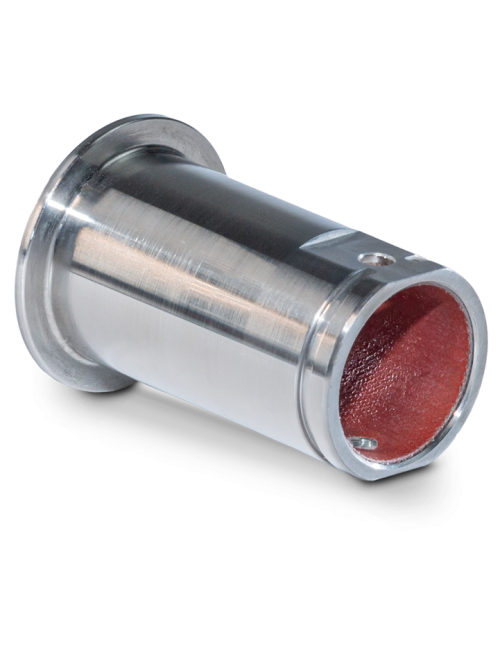

Bushings

Bushings

The application area for bushings includes bearings that need to accommodate rotational and linear movements.

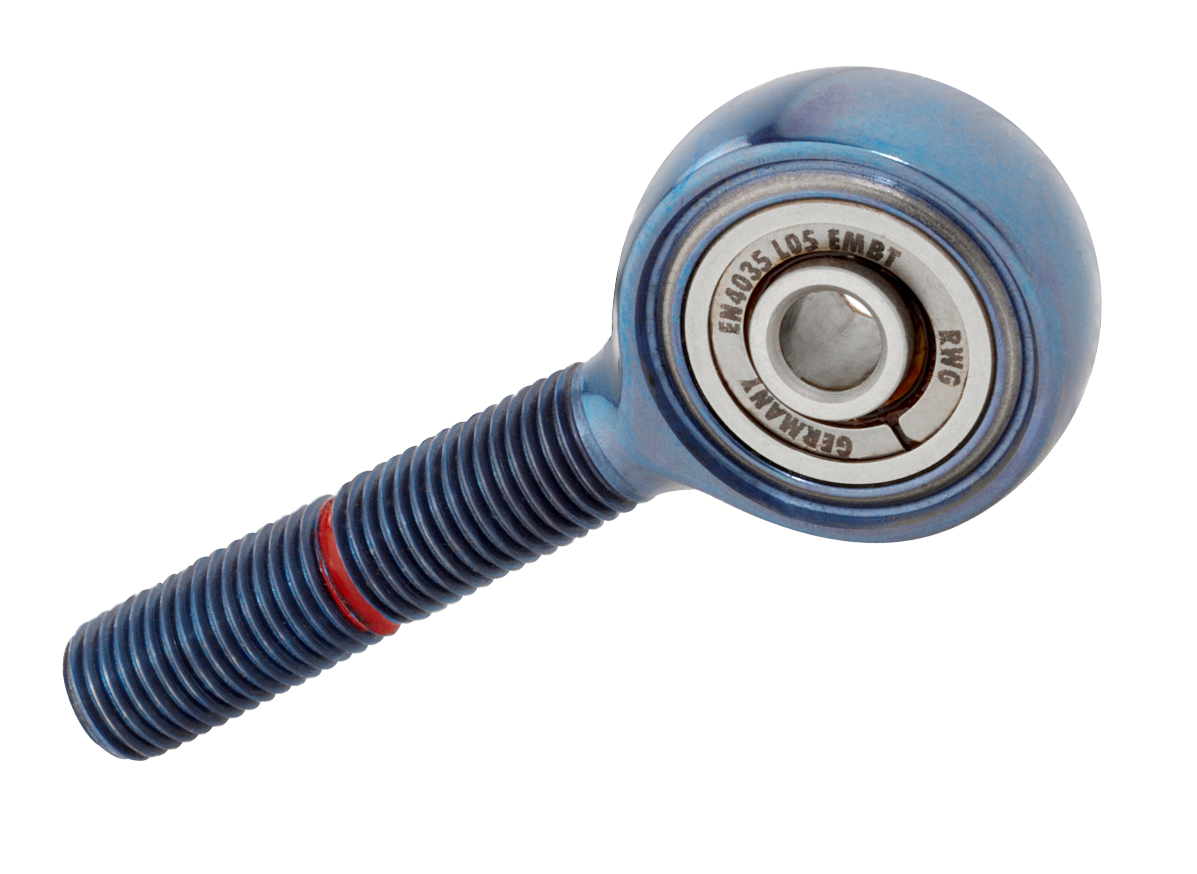

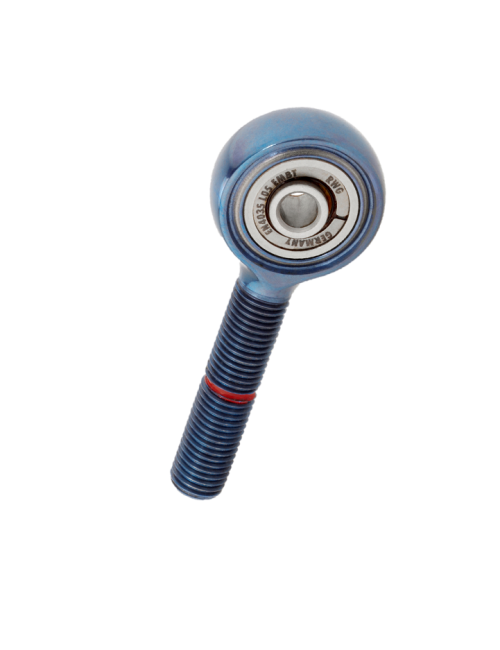

Rod Ends

Rod ends can be combined with various bearings and used as connections for levers and linkages.

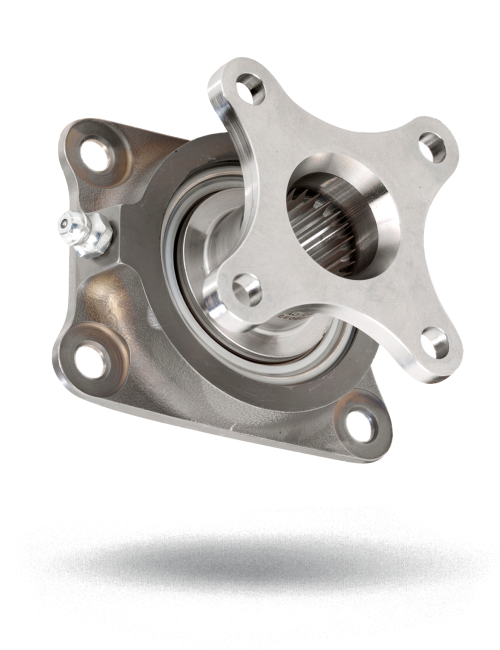

Special solutions

RWG offers custom special solutions for every application.

Spherical Bearings with or without Rod Ends

Metal-to-Metal Spherical Plain Bearings with/without Rod Ends
Spherical bearings with rod ends have a spherical inner ring and can therefore accommodate movements in all three axes.

Ball Bearings

RWG Germany GmbH offers spherical roller, ball and needle bearings in various designs.

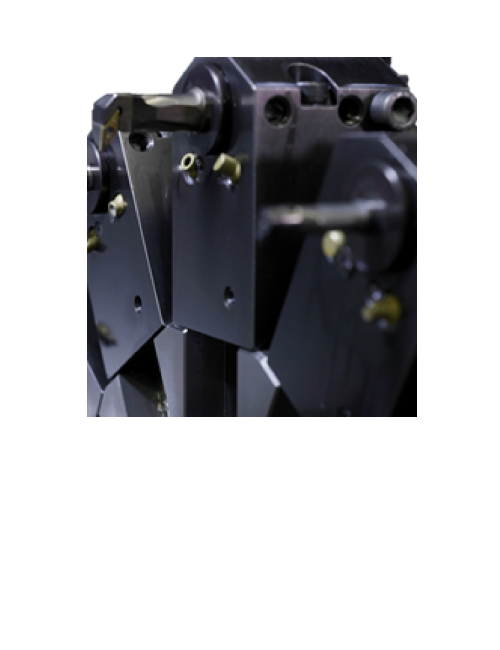

Materials & processes

RWG has decades of experience in processing and using a wide variety of materials.
