Spherical Bearings
Maintenance-free or grease-lubricated
Details
Spherical Bearings

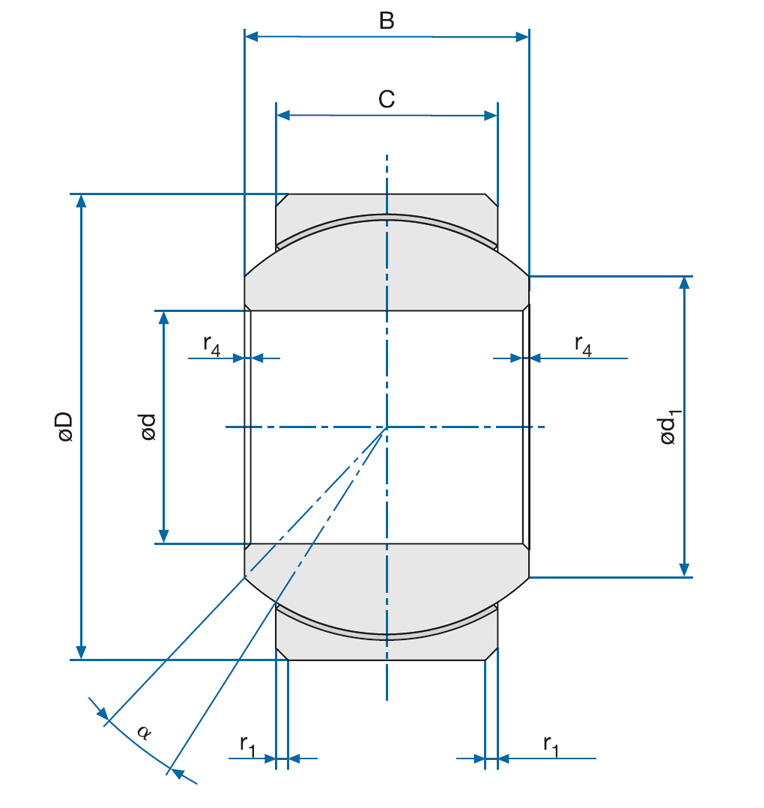

Spherical plain bearings consist of a spherical inner ring and an outer ring that surrounds it. The outer ring is formed onto the inner ring, thereby enclosing it in a spherical manner. To achieve low-friction sliding properties, the contact surfaces between the rings can optionally be fitted with a self-lubricating liner (PTFE). These bearings are typically used in applications that require slow rotational and swiveling movements under high loads.
Custom Solutions
For example:
- Integrated Design: Locknut, Threadlock
- Geometry: Extended inner ring, Flange
- Configuration: Pressure-formed outer ring, Split ball, Loader slot, Swaging groove in outer ring
- Lubrication: Grease-filled, Lubrication bore, Self-lubricating coatings
- Material: Stainless steel, aluminum, copper alloys, nickel-based alloys
- Surface protection: Passivation, Zn-Ni, hard chrome, cadmium, phosphating
- Dimensions:
- Inner diameter up to approx. 160 mm
- Outer diameter up to approx. 230 mm
- Width up to approx. 150 mm
Technical Features
- Through-hardened for high load capacity
- Operating temperature range: -200°C to +600°C
- Maximum load capacity in a compact design
- For more technical details, see Technology
Integrated design: Spherical bearing with a flange and lock nut in the Airbus A350 vertical stabilizer
- Integrated lock nut, lock washer
- Raceway coated with dry film lubricant
- PTFE contact seal
- Stainless steel 1.3544 and 1.4548
- Individual component test reports for safety-critical parts
- Lubrication holes/grooves for regreasing during service
- Zn-Ni plated or passivated individual components
- Precise bearing clearance adjustment
Standardized spherical bearings
RWG offers spherical bearings in accordance with numerous international and OEM standards:
- International: EN, SAE AS, LN
- Airbus: NSA, ASNA, ABS
- PANAVIA: PAN
- Many more
